StarTie

Wall tie for securing a new leaf to an existing wall

StarTie is a new build stainless steel wall tie used when securing a new wythe to an existing brick, stone or concrete wall.

System Components

StarTies
Hand-held support tool
Drill bit for pilot hole (hard masonry)

StarTie Across Cavity Application

The tie is installed into the existing masonry and simply bedded into the mortar as the new wall is constructed.

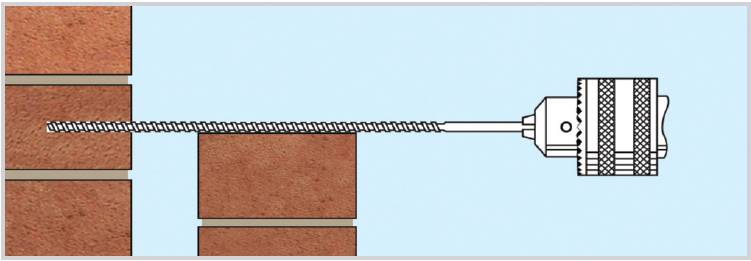

StarTe Installation 1

1. Drill 6mm pilot hole into existing wall (not required with low density blocks)

StarTie Installation 2

2. Load tie into hand held or power support tool and line up with pilot hole while resting support tool on new wythe

StarTie Installation 3

3. Drive in tie with hammer or SDS drill. (if insulation is installed, fit retaining clip over the StarTie)

StarTie Installation 4

4. Embed the outer end of the StarTie into the mortar as the new wythe is constructed

For tying a new inner or outer skin to an existing wall
For securing a new section of wall where damaged masonry is being taken down and reinstated

One-piece grade 304 or 316 stainless steel tie
Effective in brick, blocks, concrete, stone and regional materials
Great axial strength
Excellent holding power
Accommodates normal building movement
Provides secure stress free connection
